Home Products Laminar Flow Cabinets

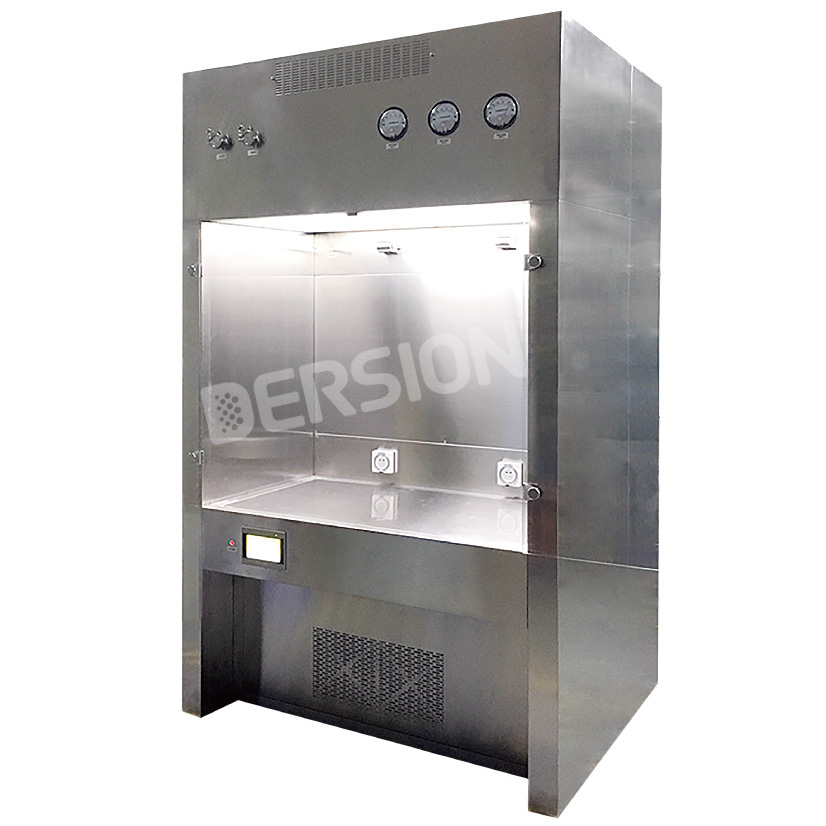

Weigh Cabinet

A air clean machine mostly used in pharmaceutical, cosmetics and micro-organism studies, science laboratories, provides a clean zone for people to do such as powder weigh work. This weigh cabinet provides a vertical airflow, part of the purified air circle in the work zone, and part of the air discharged, informed a negative pressure environment avoid the powder spread, to keep the whole clean rooms’ cleanliness level.

Get A Quote

浏览次数：

Product Features

Product Features:

● Liquid HEPA filter, meet cGMP standard;
● LCD touchscreen make the operation convenient;
● Air speed adjusted automatically, run in the steady state;
● PAO dust-send window and DOP test window;
● Collocate with Acrylic doors and operation gloves to assure the security.

Standard Drawing:

Technical Specifications:

Dimensions WDH	KCE-AMB-1300	KCE-AMB-1700	KCE-AMB-2400
Overall	130013002400	170013002400	240017002400
Working Area	12008001200	16008001200	230012002000
Material	Stainless Steel SUS304(Polished or brushed surface)
Clean Level	ISO 5
Air Speed	0.2-0.6m/s
Air output(Settable)	1800CMH	2300CMH	5000CMH
Exhaust Air(Settable)	540CMH	690CMH	1500CMH
Filter Units	1150x630x93x1片	1550x630x93x1片	1100x1030x93x2片
Filter Units	G4/F7/H14（99.99%@0.3um）
Manometer	Dwyer 0-150Pa 0-250Pa 0-500Pa
Test Window	SUS PAO dust sent mouth and DOP test mouth
Bacterial Colony	≤0.5/dish.hour (dia. 90mm Culture Medium Dish)
Power	380W	550W	760W
