Enclosed Clean Bench

These clean benches made use of clean rooms’ air recycle principle, work tables are perforated, underneath the worktables are primary filters for recycling the clean air within the benches, therefore, HEPA filters have longer use life. These clean benches can be equipped with lift gates become enclosed clean benches for normal environment, which have been widely used in medical industries.


Get A Quote

浏览次数:
Product Features:
● Lift gates can be fixed at any lifted place, flexible and efficient;
● Double primary filters and part of new air supplement ensure the positive pressure environment around the work area, prevent outside unfiltered air pollution;
● Work tables made of stainless steel plates with holes, allow the clean air to circle in the benches, effectively increase the use life of HEPA filter;
● Foreparts of the clean benches are concave to remain foot space for operators.

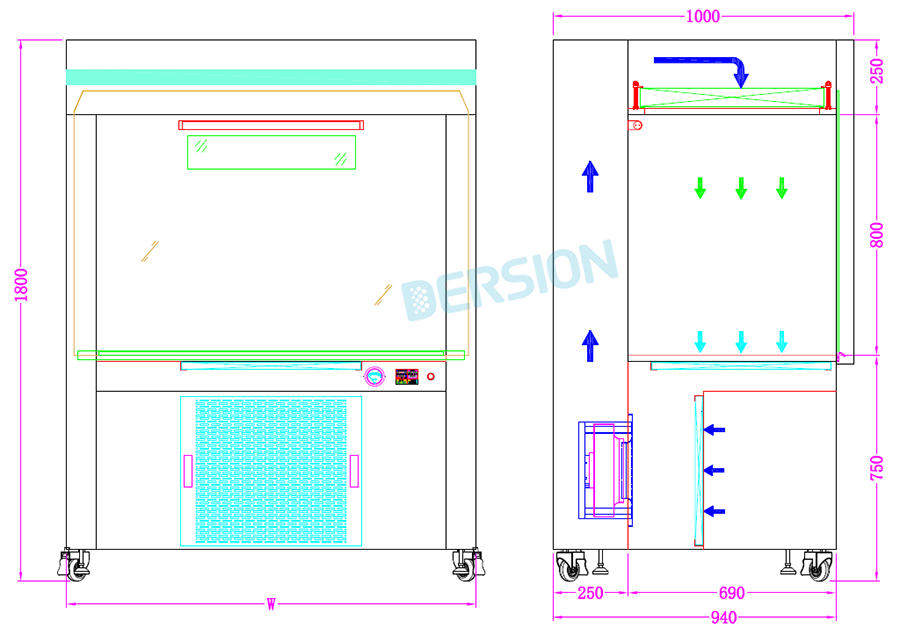

Standard Drawing:

Specifications:
Sizes
W*D*H
 Outside: 1060x1000x1800
   Inside:  1000x750x800
1360x1000x1800
   1300x750x800
      1660x1000x1800
    1600x750x800
People 1 1-2 2-3
Fan Velocity  (m³/h)   905 1205 1510
Air Speed (m/s) 0.45m/s±20%
Cleanliness Class Class 100(USA 209E Standard)
Filter System 99.99%@0.3um
    915x610x70-1pcs   1220x610x70-1pcs 915x610x70-1pcs
610x610x70-1pcs
Germicidal Lamp(Optional) 8W
Material of Cabinet table Brushed Stainless Steel SUS304
Noise <56dB <56dB <58dB
                          0.2m right ahead of the cabinet and 1.2m above floor
Power 220V  150W 220V  175W 220V  250W

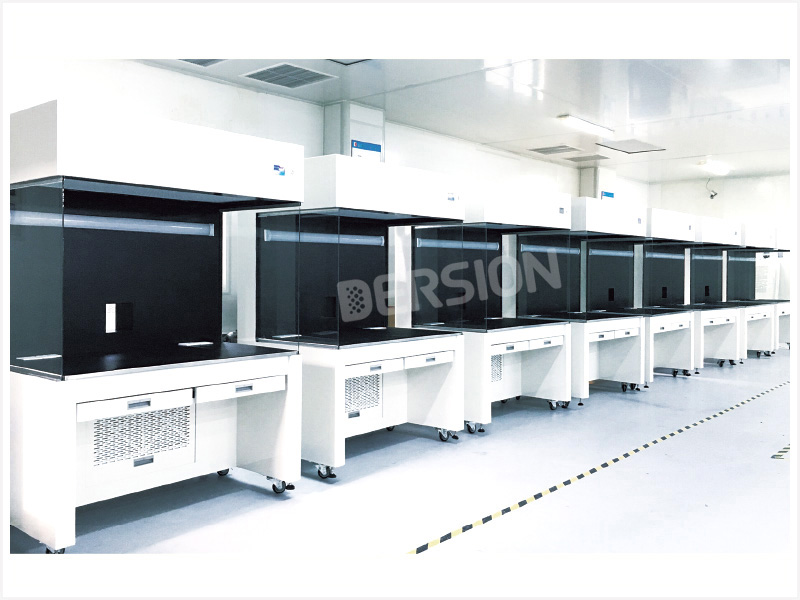

Case Share:


ML Optic


Xiaozi Glass Works
