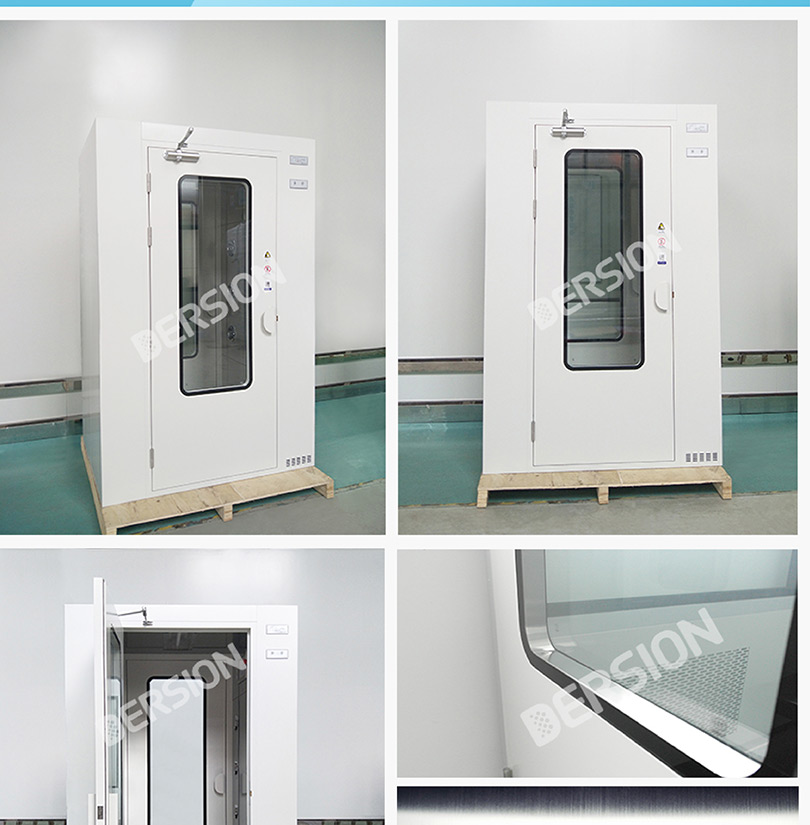

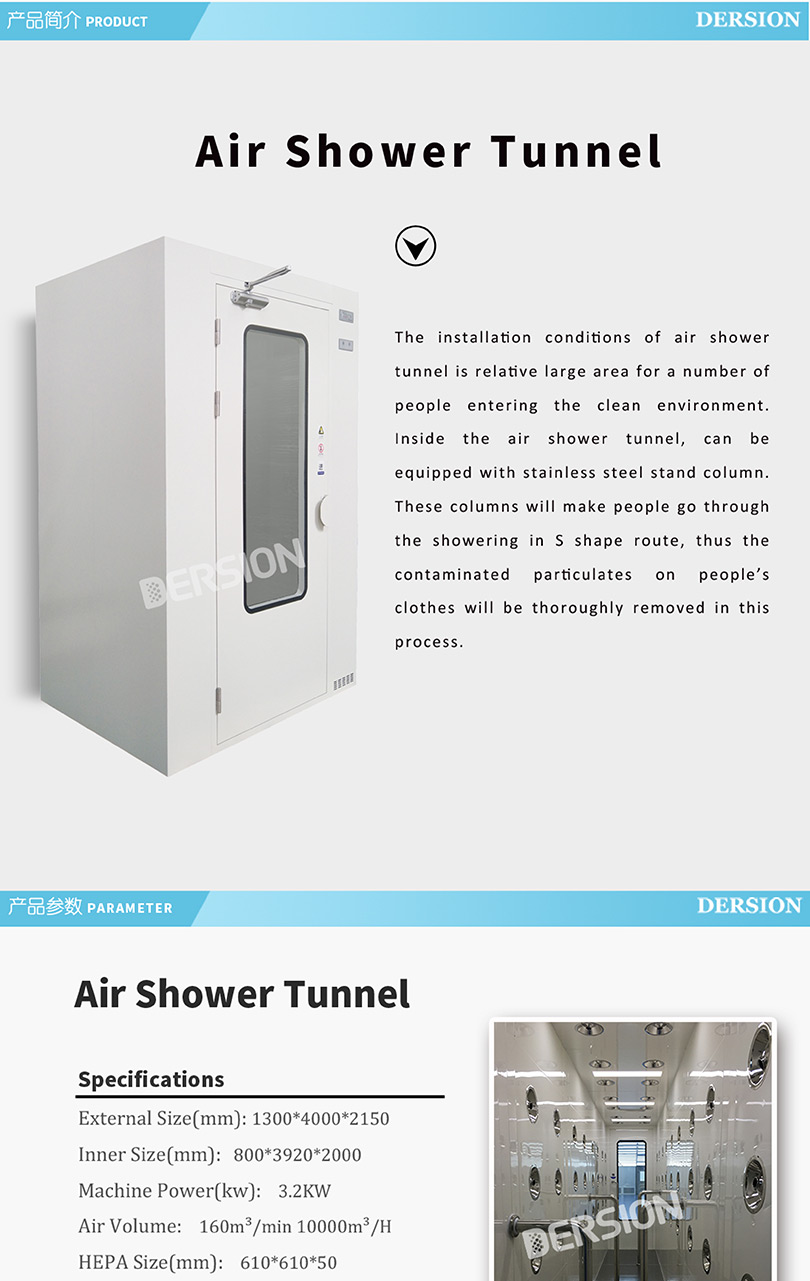

Air Shower Tunnel

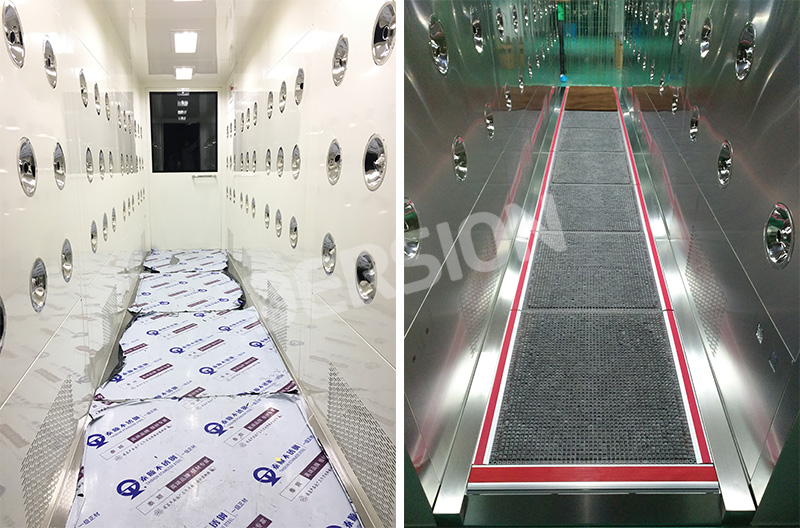

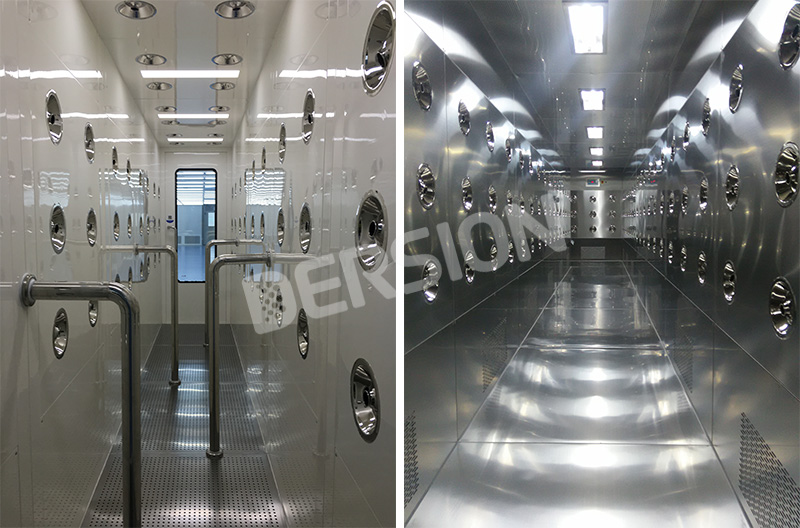

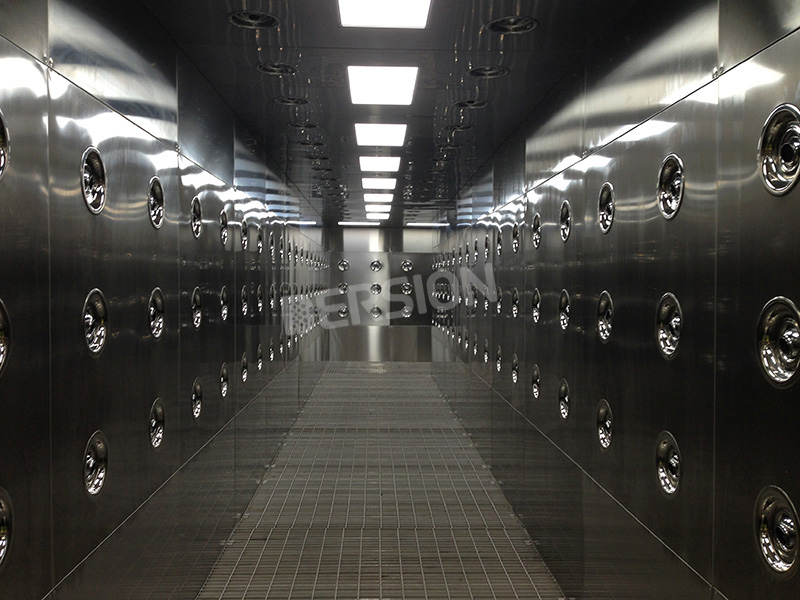

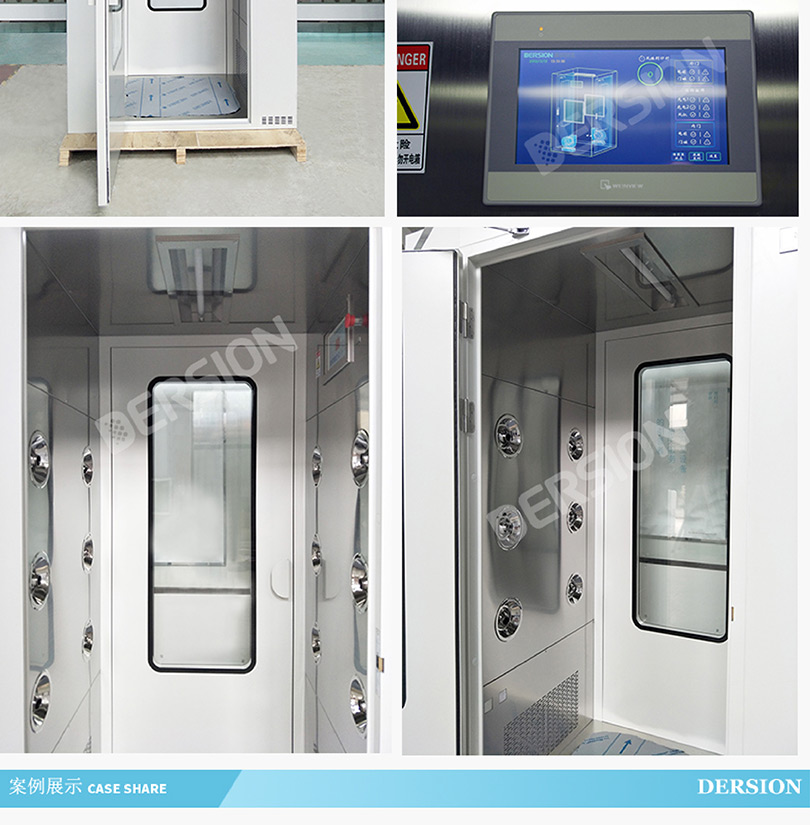

The installation conditions of air shower tunnel include large area and large number of people within the clean environment. Inside the air shower tunnel, can be equipped with stainless steel stand column. These columns will make people go through the showering in S shape route, thus the contaminated particulates on people’s clothes will be thoroughly removed in this process.


Get A Quote

浏览次数:
Product Features:

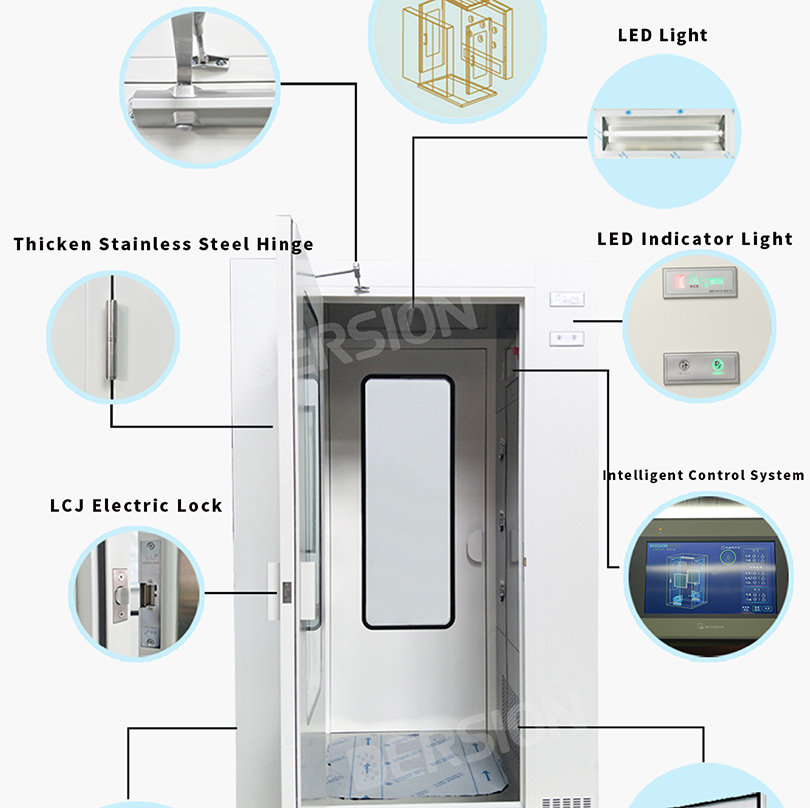

● Intelligent: Future Series Control System; ARM master, double CPU, 280MHZ; Several shower patterns; Voice prompt, pictures and videos display; Intelligent judging about link and running status; Fault self-detection capability; Reserved       sockets for transducers of air speed, air pressure, cleanliness class.

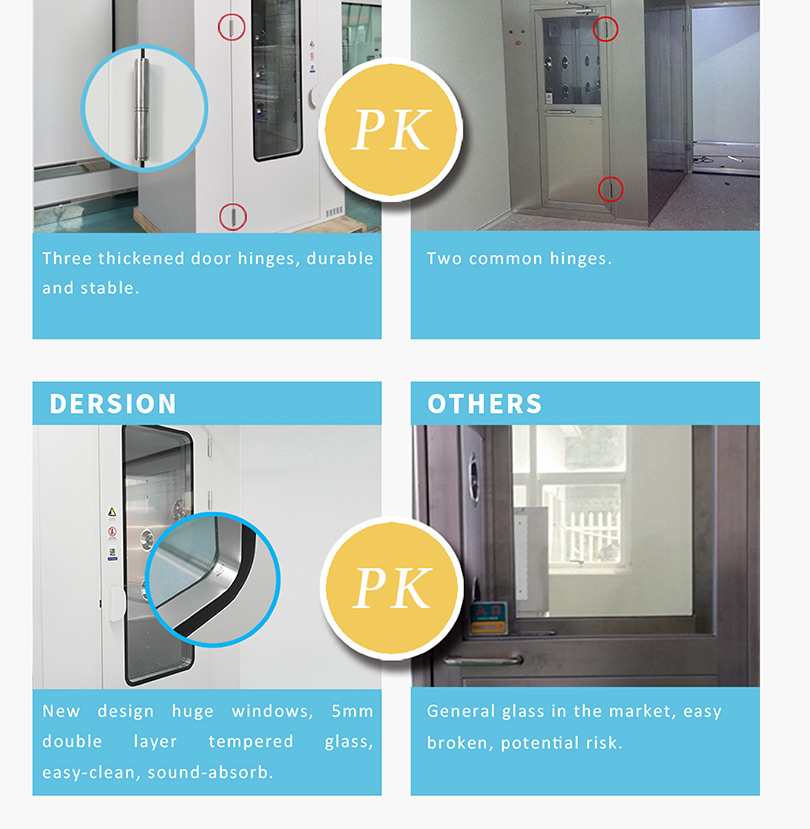

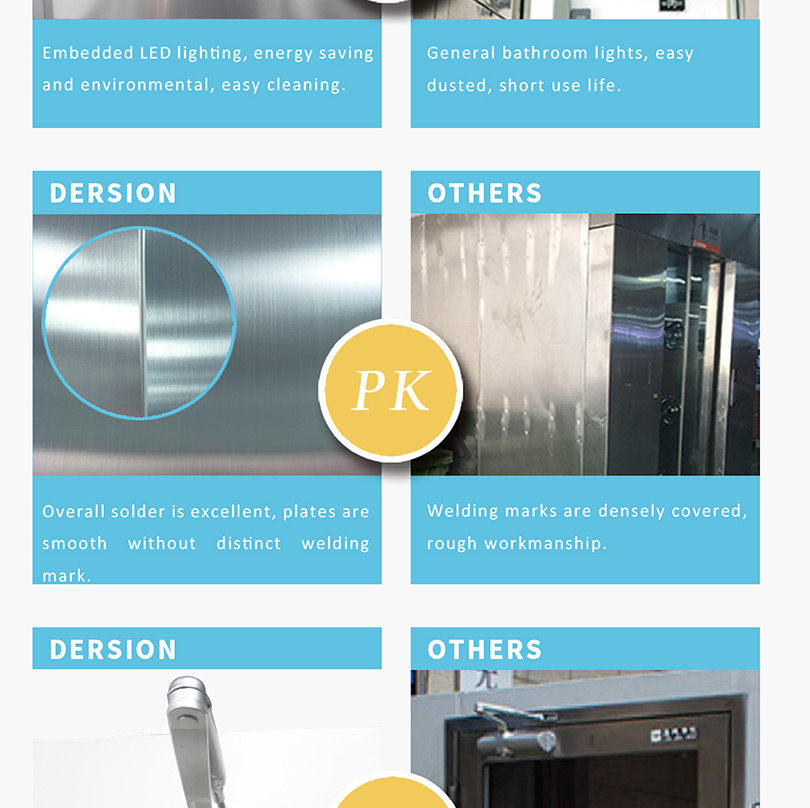

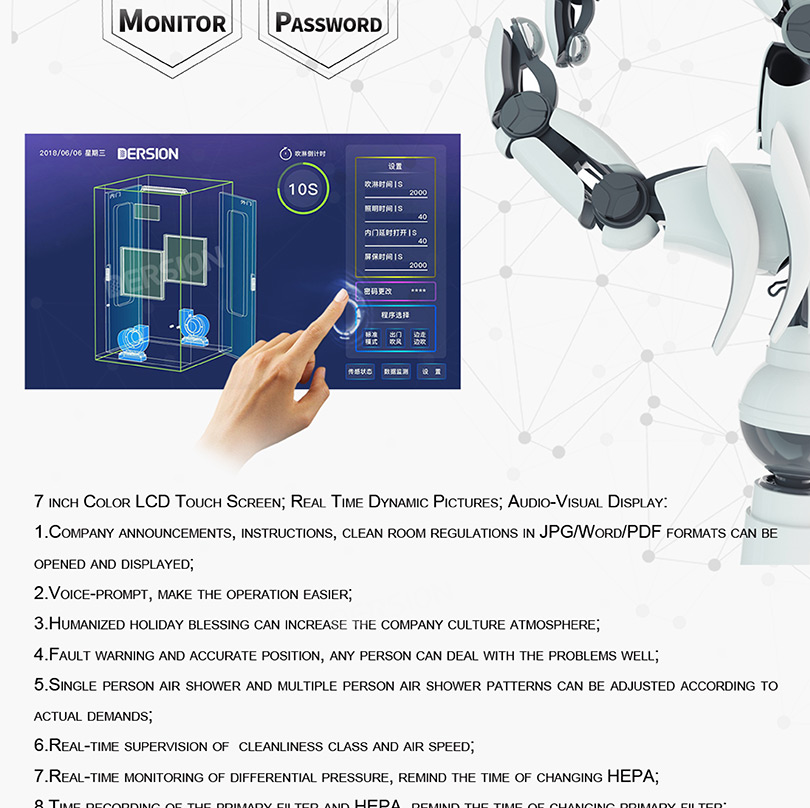

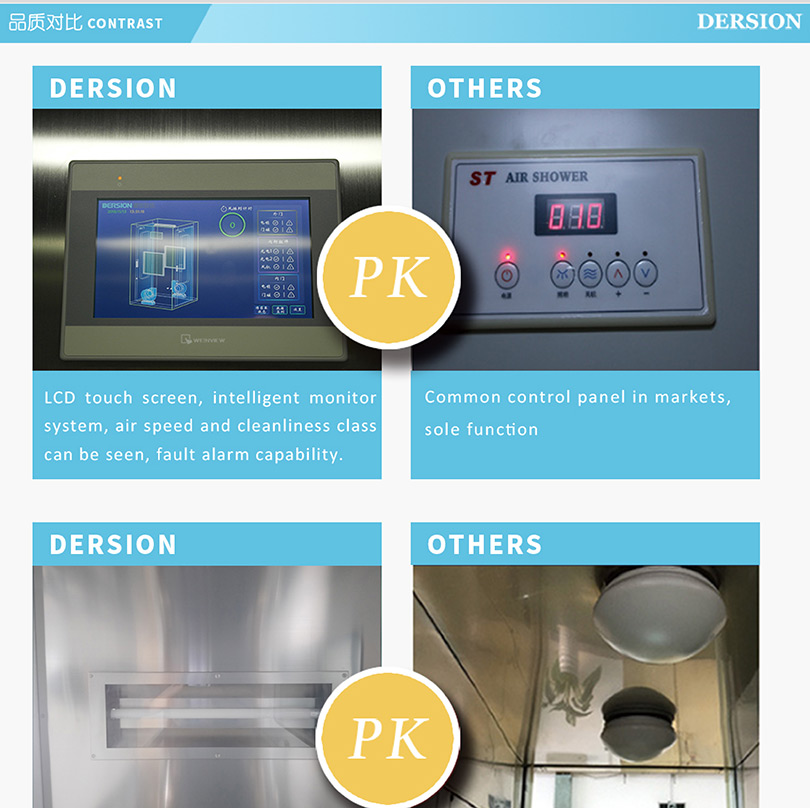

● Beautiful: Huge double-glazed windows; No visible welded joints; LCD touch screen.
● Reliable: Steel air-tight door with double glazing units made of tempered glass; dispensing  technology, sealing class equal to IP6; Passed over one million times tests.

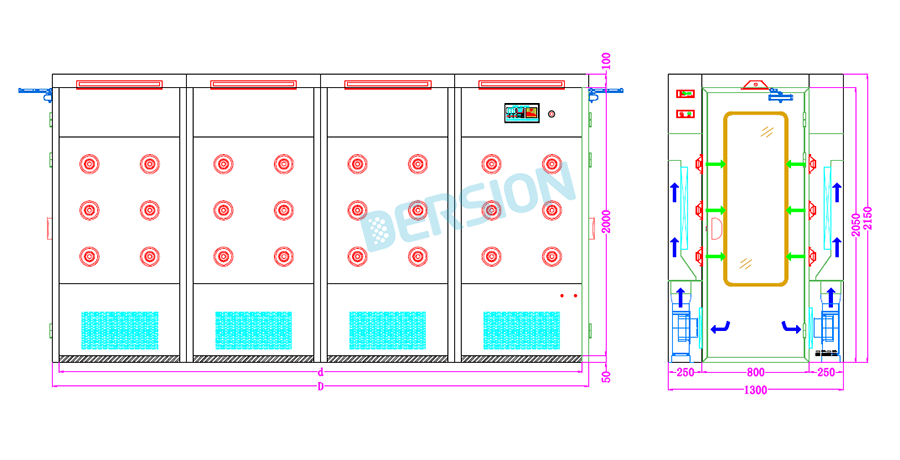

Standard Drawing:

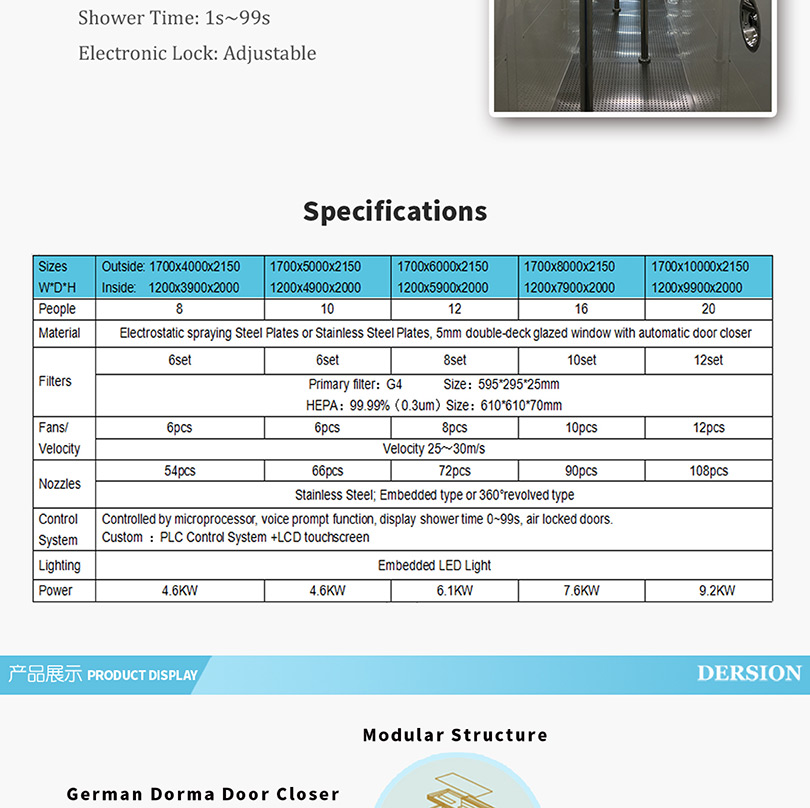

Specifications:
Sizes
W*D*H

Outside: 1700x4000x2150
Inside:    1200x3900x2000



1700x5000x2150
1200x4900x2000

  1700x6000x2150
  1200x5900x2000

1700x8000x2150
1200x7900x2000


  1700x10000x2150
1200x9900x2000

People 8 10 12 16 20

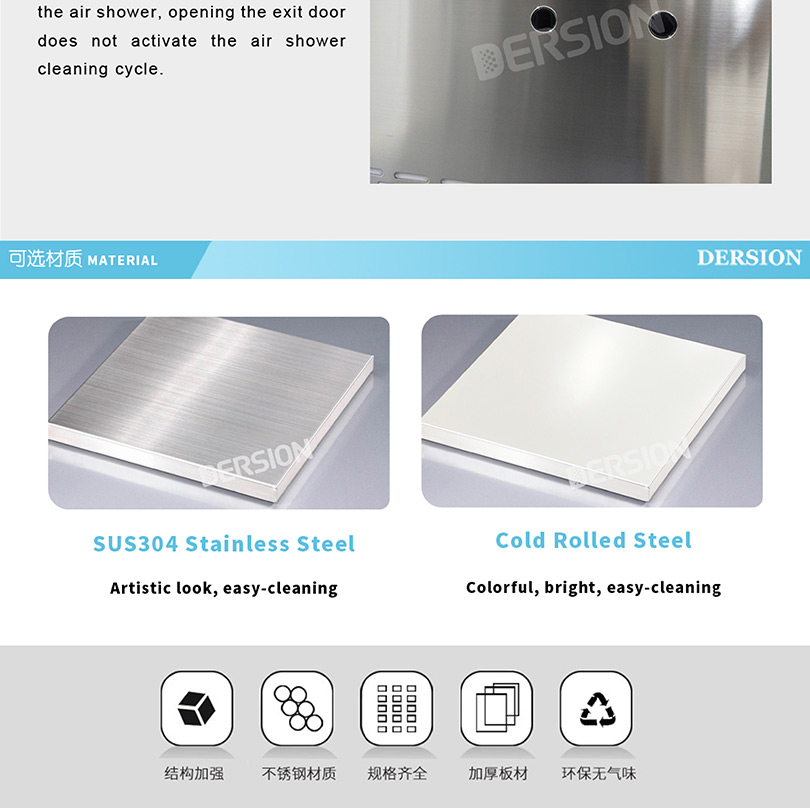

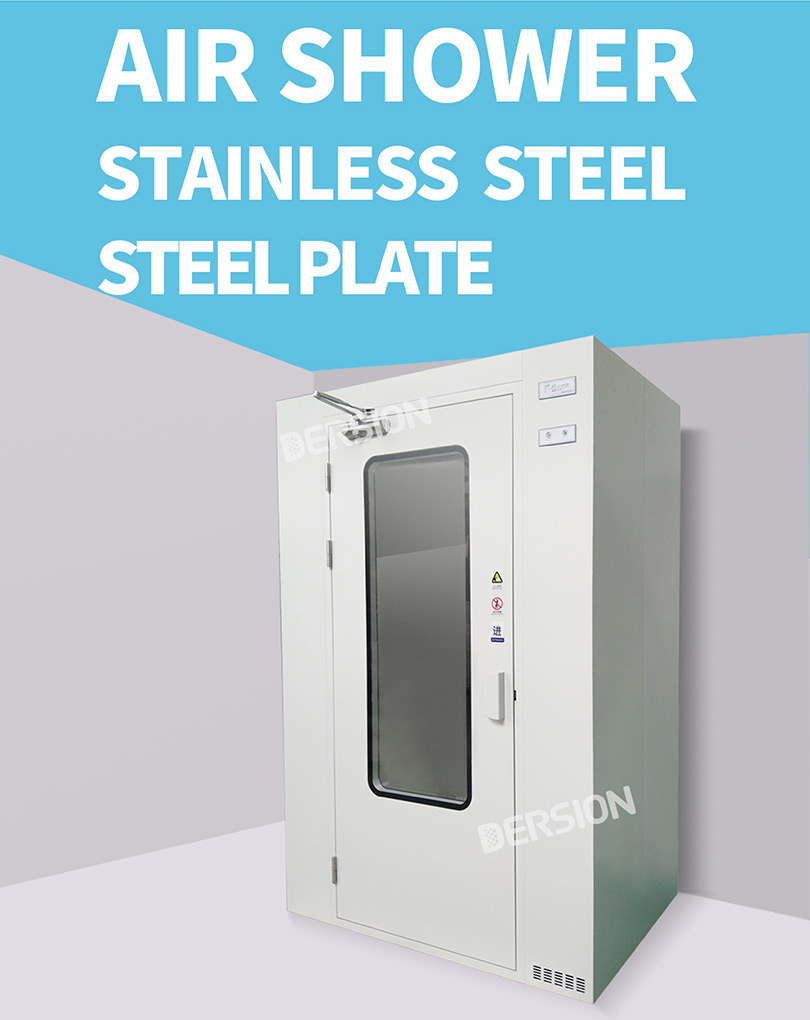

Material   Electrostatic spraying Steel Plates or Stainless Steel Plates, 5mm double-deck glazed window with automatic door closer
Filters 6set 6set 8set 10set 12set

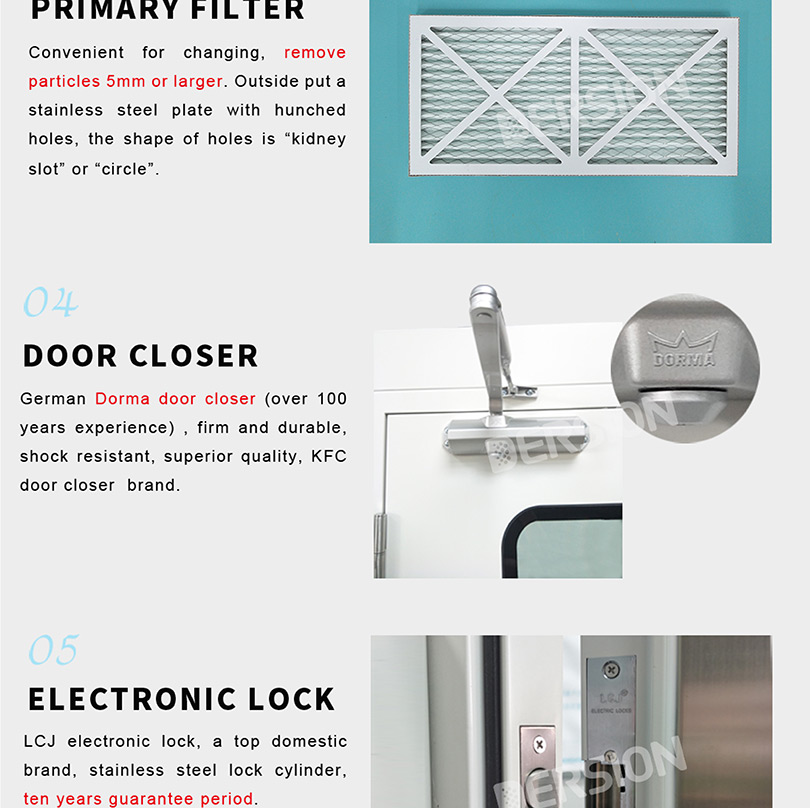

Primary filter:G4              Size:595*295*25mm
HEPA:99.99%(0.3um)Size:610*610*70mm
  Fans/ Velocity   6pcs 6pcs 8pcs 10pcs 12pcs
Velocity 25~30m/s
Nozzles 54pcs 66pcs 72pcs 90pcs 108pcs

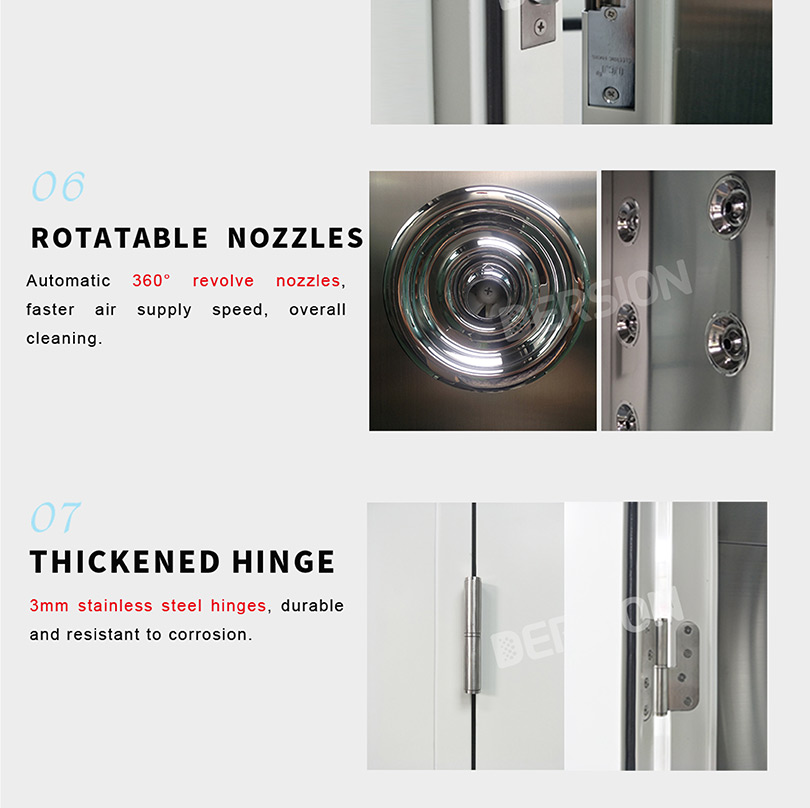

Stainless Steel; Embedded type or 360°revolved type
 Control  Controlled by microprocessor, voice prompt function, display shower time 0~99s, air locked doors.
Custom :PLC Control System +LCD touchscreen

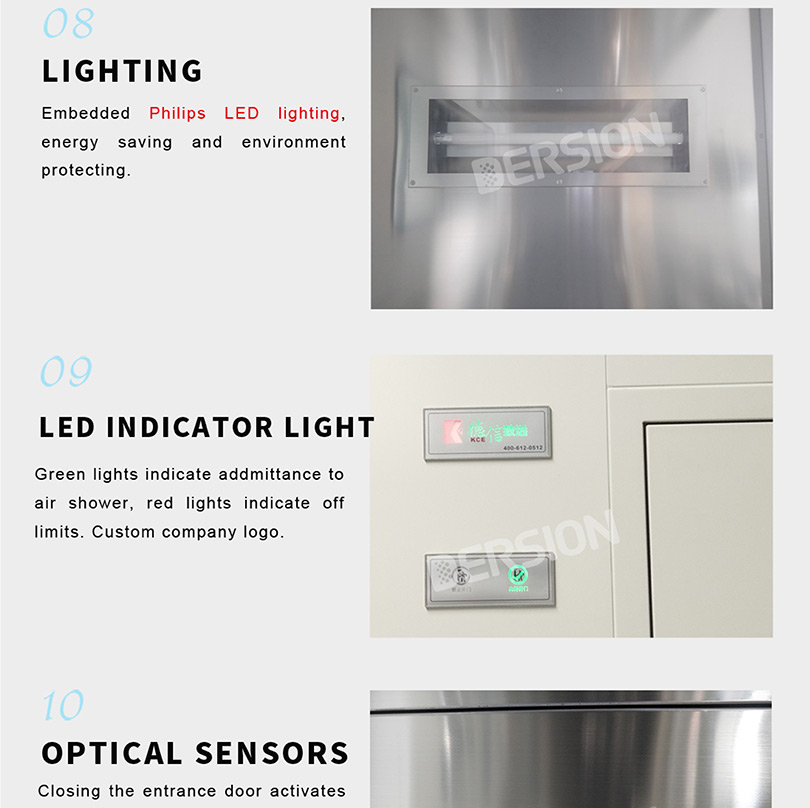

Lighting Embedded LED Light
Power 4.6KW 4.6KW 6.1KW 7.6KW 9.2KW

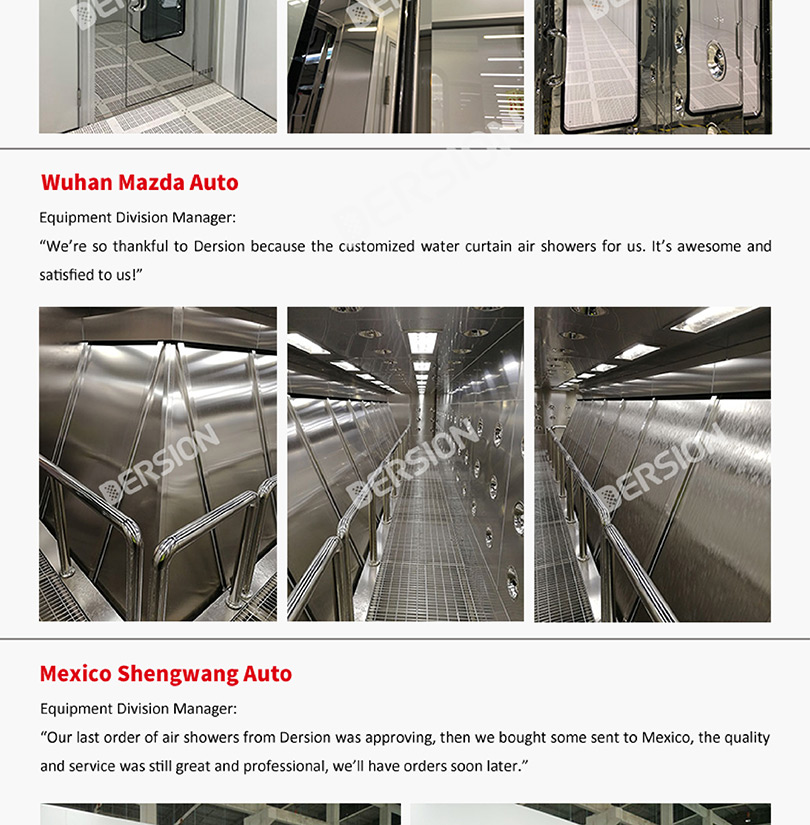

Project Cases:



JAGUAR AUTO


                                FOXCONN                                                              GEELY VOLVO AUTO


                          MEDIA ELECTRONICS                                                            PIGEON MOM&BABY
