Home Products Intelligent Air Showers

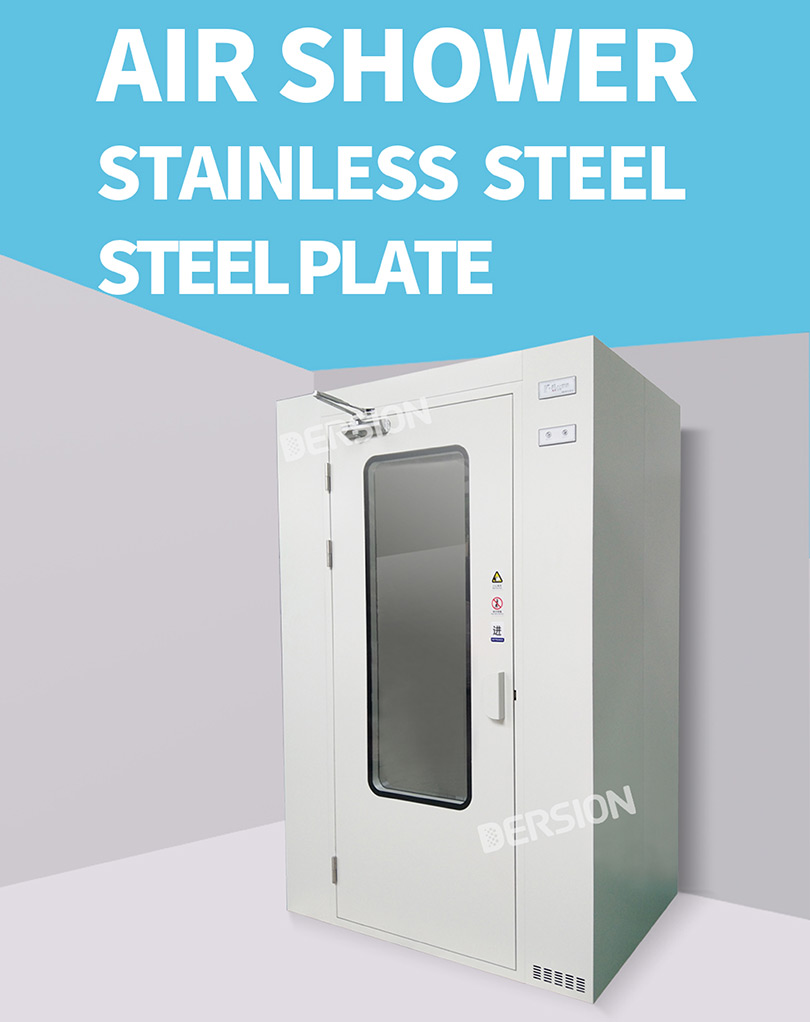

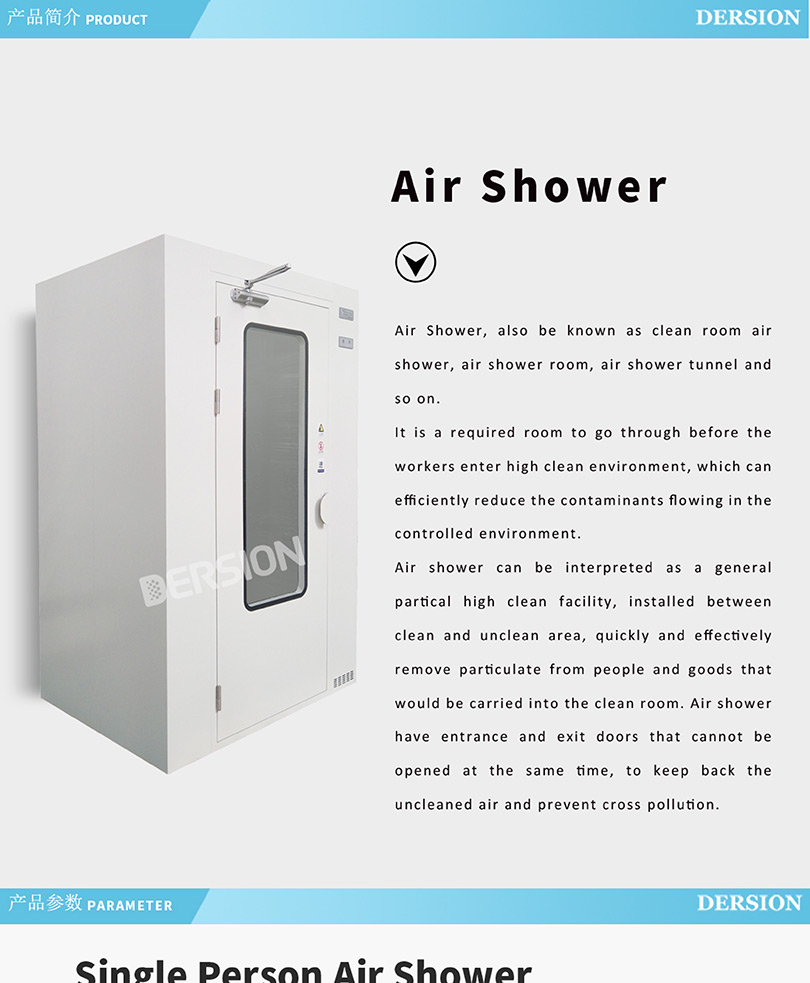

Single Person Air Showers

Get A Quote

浏览次数：

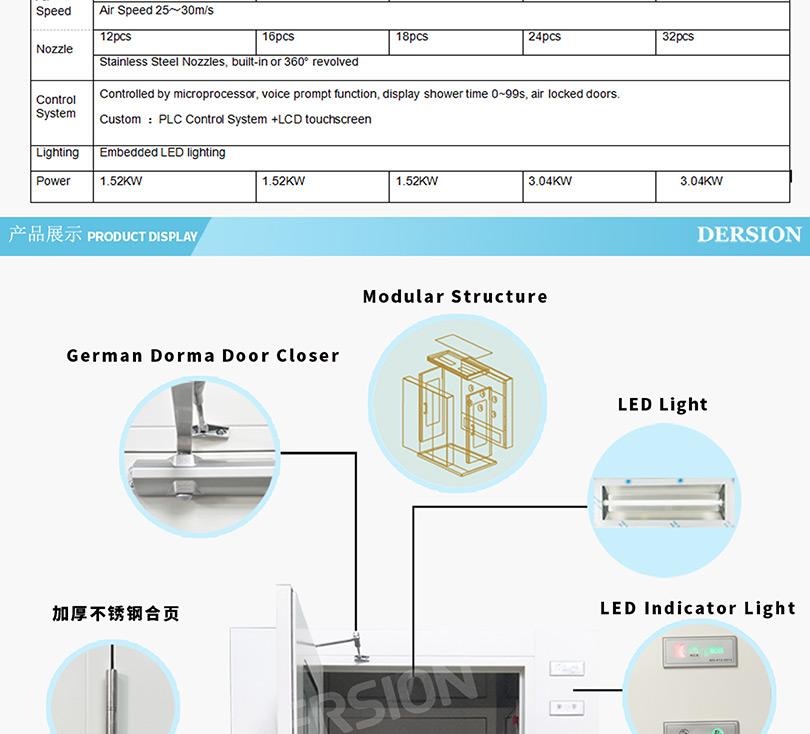

Product Features

Product Features:

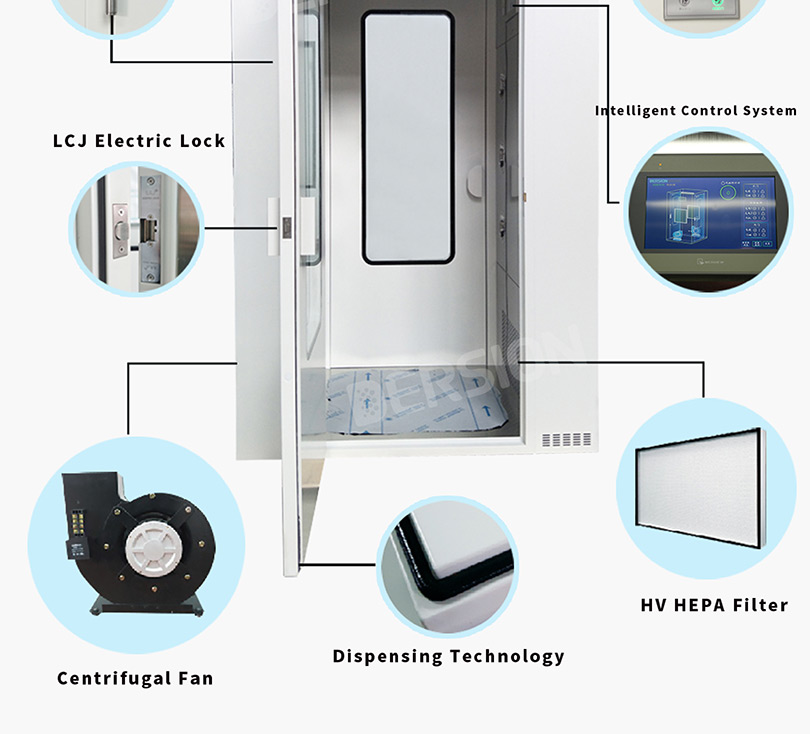

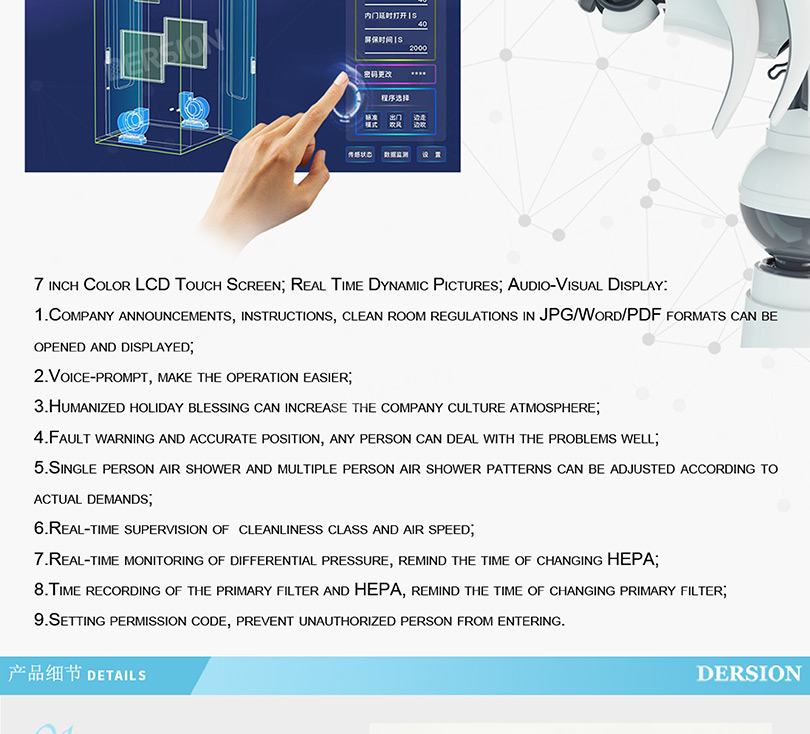

● Intelligent: Future Series Control System; ARM master, double CPU, 280MHZ; Several shower patterns; Voice prompt, pictures and videos display; Intelligent judging about link and running status; Fault self-detection capability; Reserved sockets for transducers of air speed, air pressure, cleanliness class.

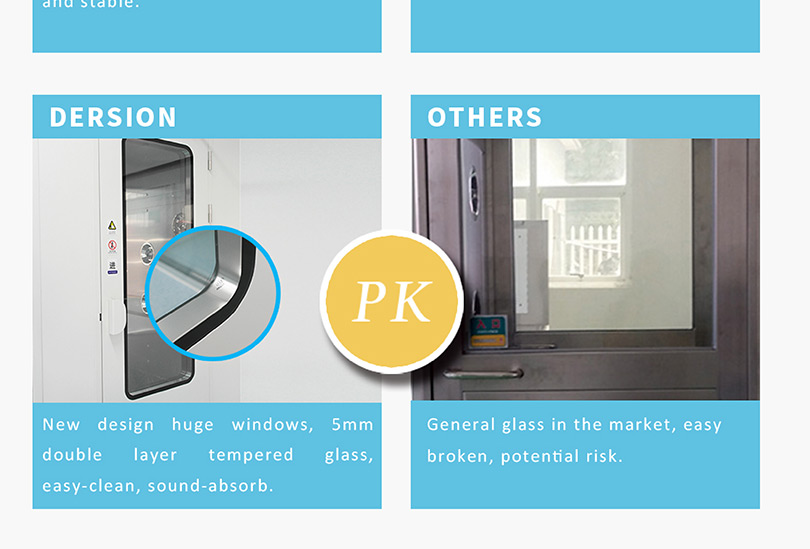

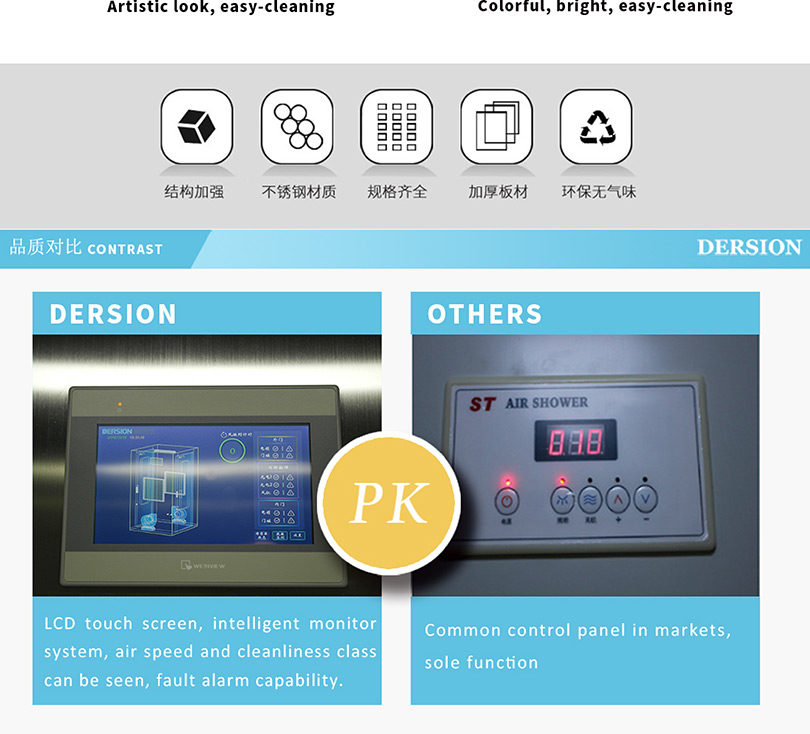

● Beautiful: Huge double-glazed windows; No visible welded joints; LCD touch screen.
● Reliable: Steel air-tight door with double glazing units made of tempered glass; Dispensing technology, sealing class equal to IP6; Passed over one million times tests.

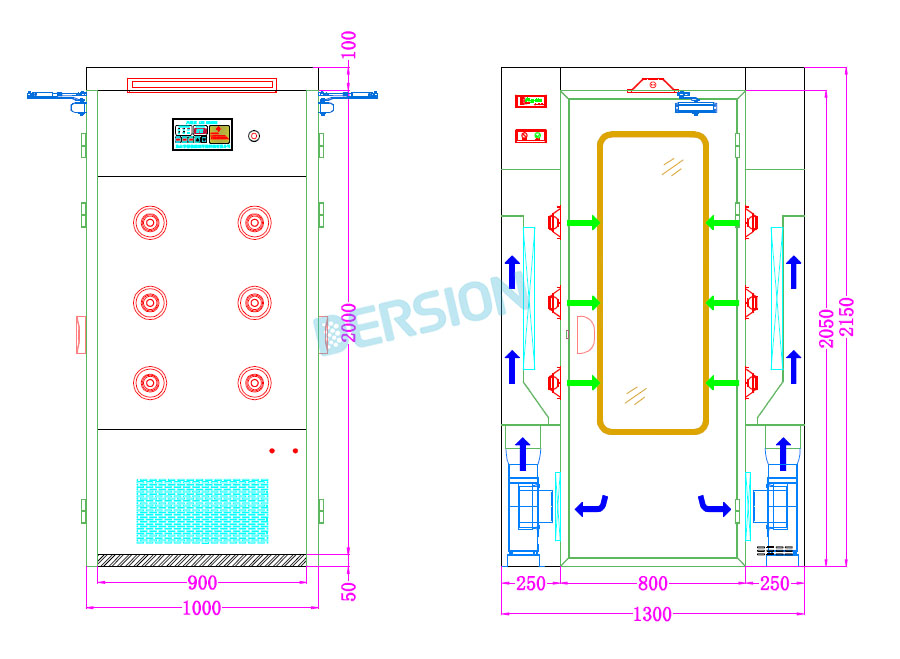

Standard Drawing:

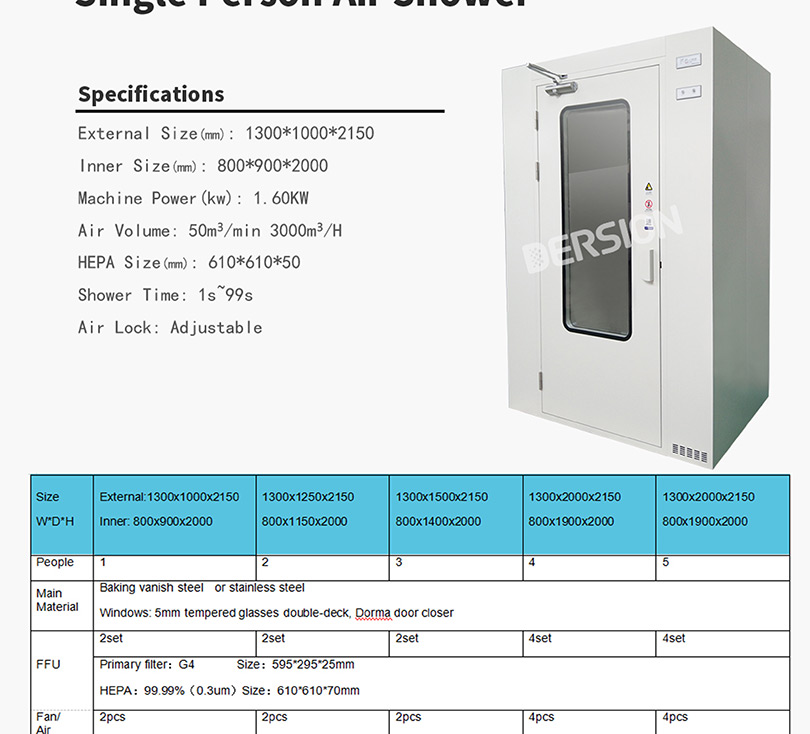

Specifications:

Size WDH	External: 1300x1000x2150 Inner: 800x900x2000	1300x1250x2150 800x1150x2000	1300x1500x2150 800x1400x2000	1300x2000x2150 800x1900x2000	1300x2500x2150 800x2400x2000
People	1	2	3	4	5

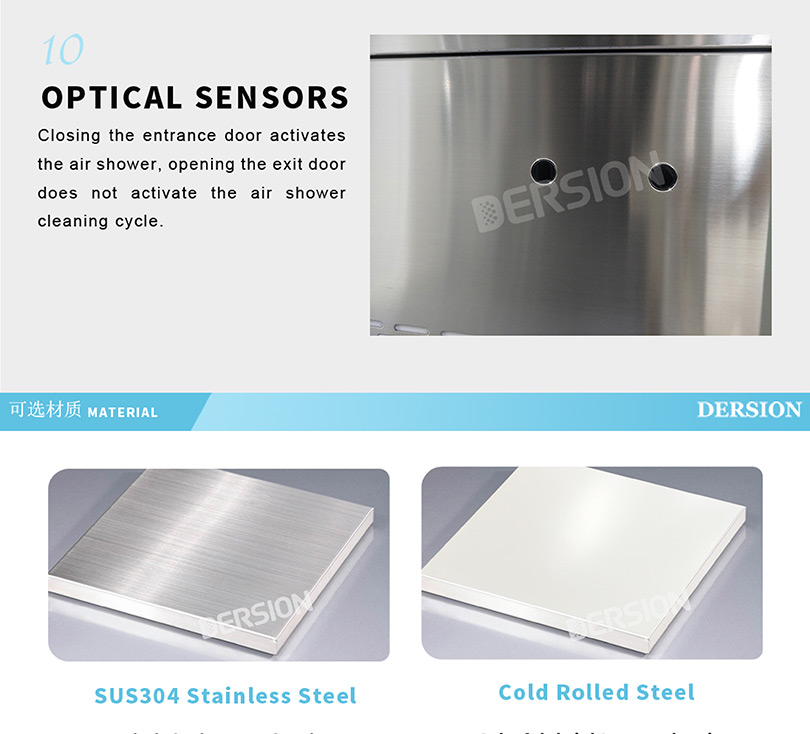

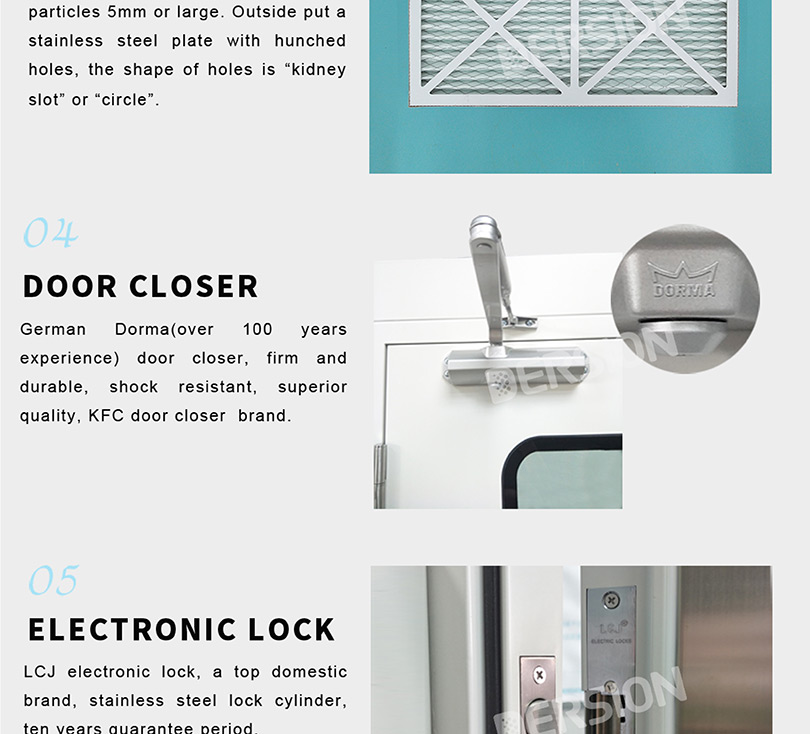

Main Material	Baking vanish steel or stainless steel Windows: 5mm tempered glasses double-deck, Dorma door closer
FFU	2set	2set	2set	4set	4set

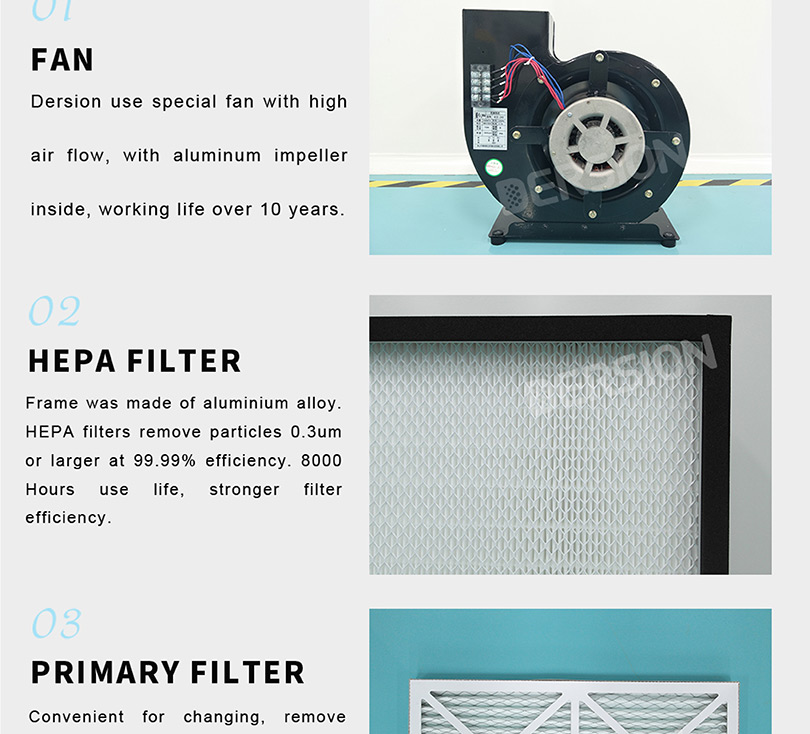

FFU	Primary filter：G4 Size：59529525mm HEPA：99.99%（0.3um）Size：61061070mm
Fan/ Air Speed	2pcs	2pcs	2pcs	4pcs	4pcs
Fan/ Air Speed	Air Speed 25～30m/s
Nozzle	12pcs	16pcs	18pcs	24pcs	32pcs

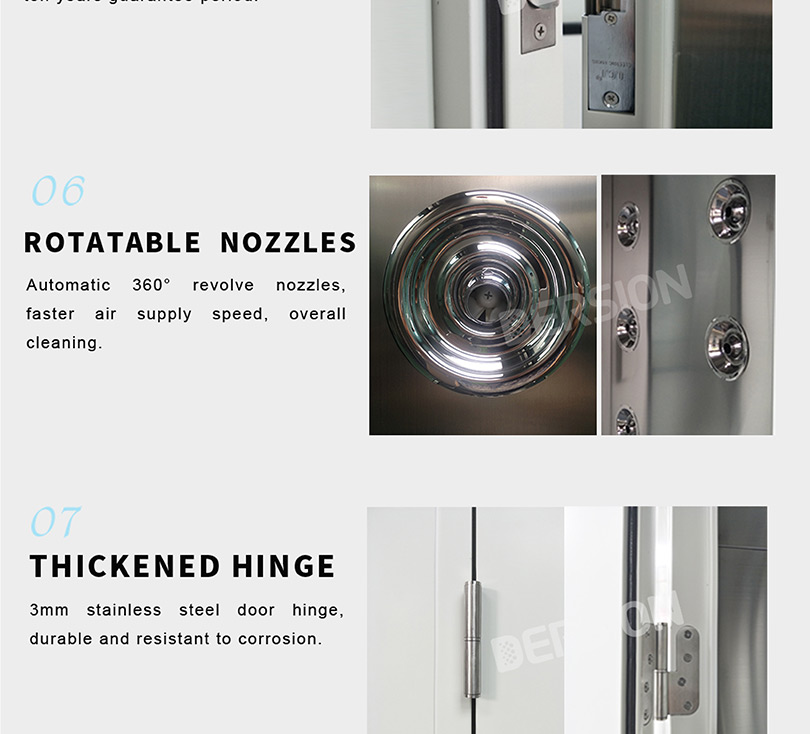

Nozzle	Stainless Steel Nozzles, built-in or 360° revolved
Control System	Controlled by microprocessor, voice prompt function, display shower time 0~99s, air locked doors.
Control System	Custom ：PLC Control System +LED touchscreen

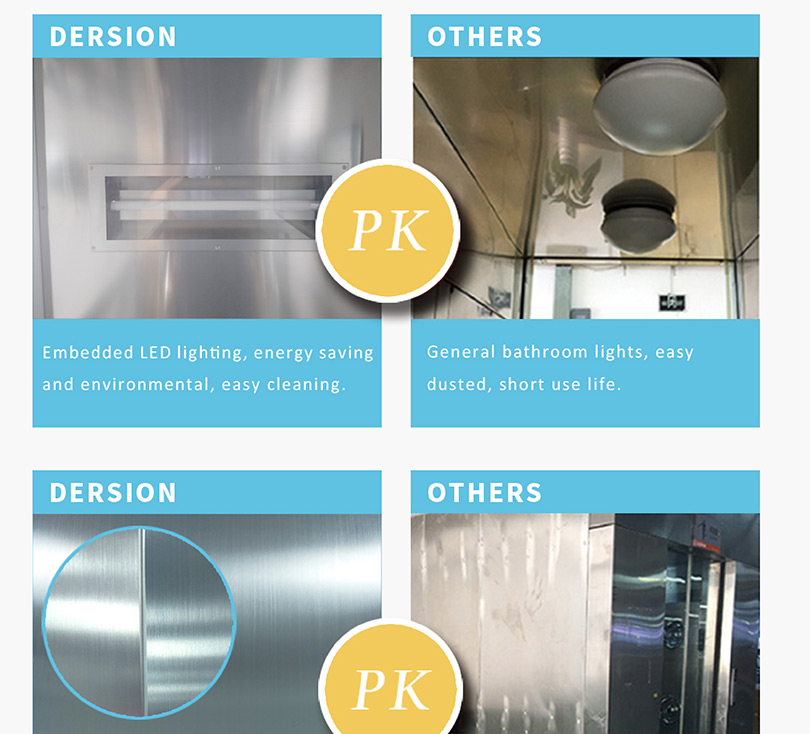

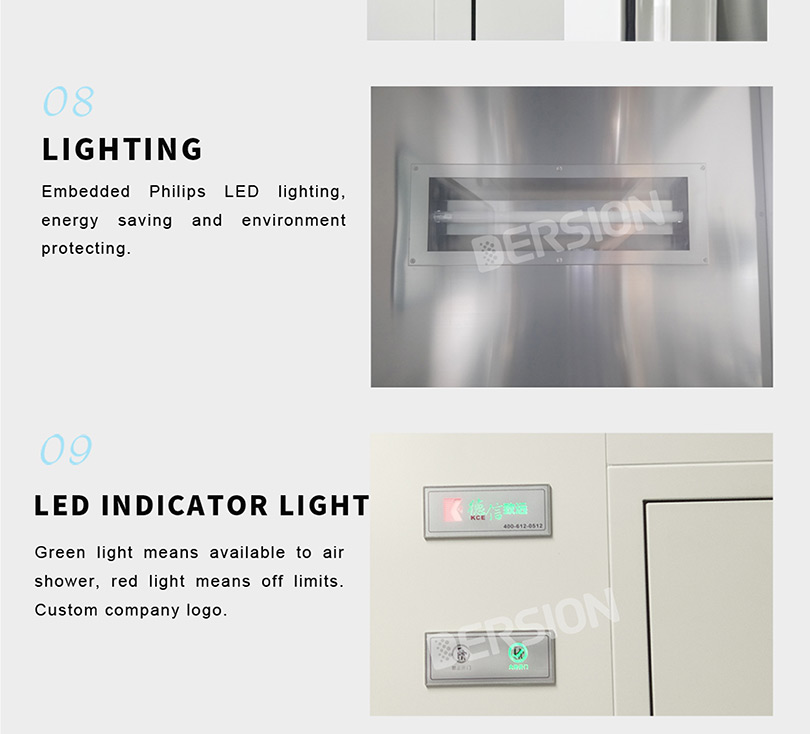

Lighting	Embedded LED lighting
Power	1.52KW	1.52KW	1.52KW	3.04KW	3.04KW

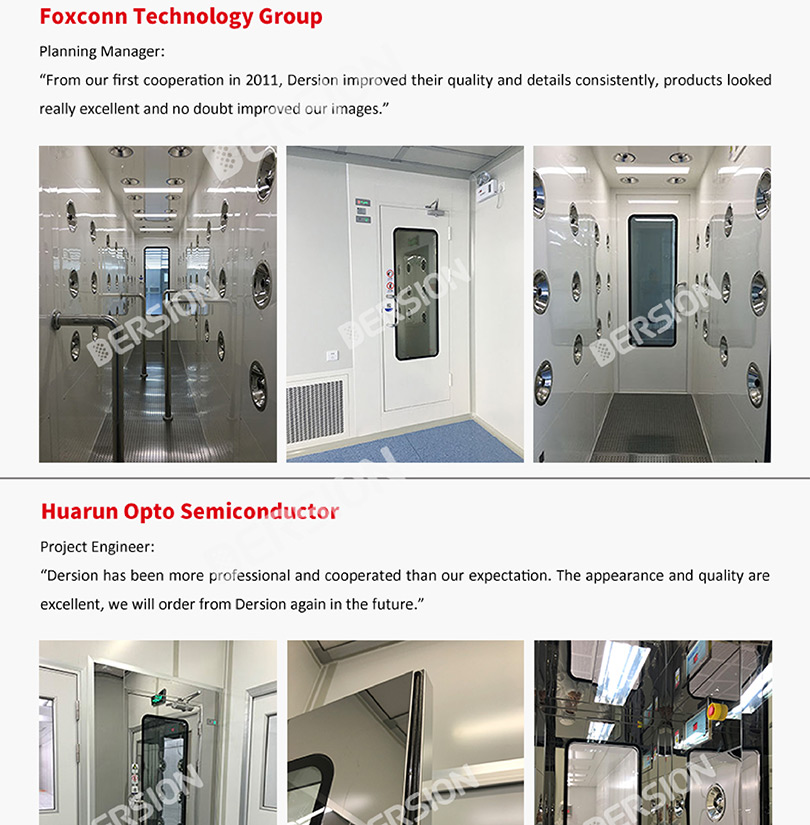

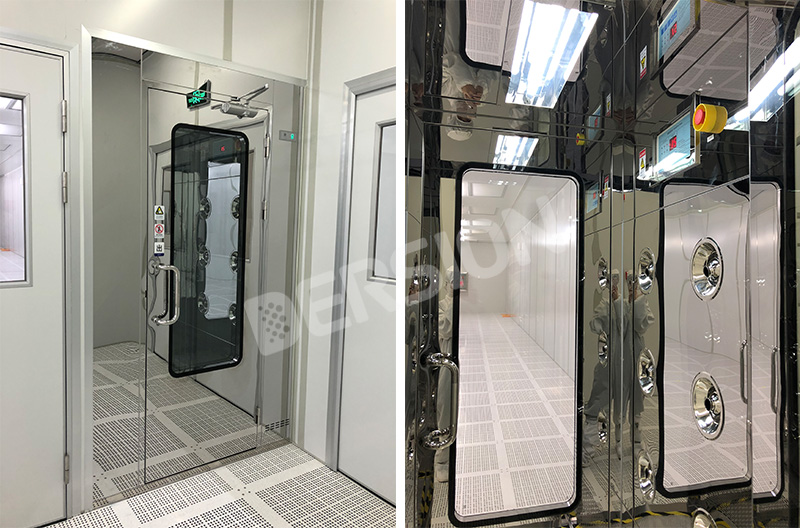

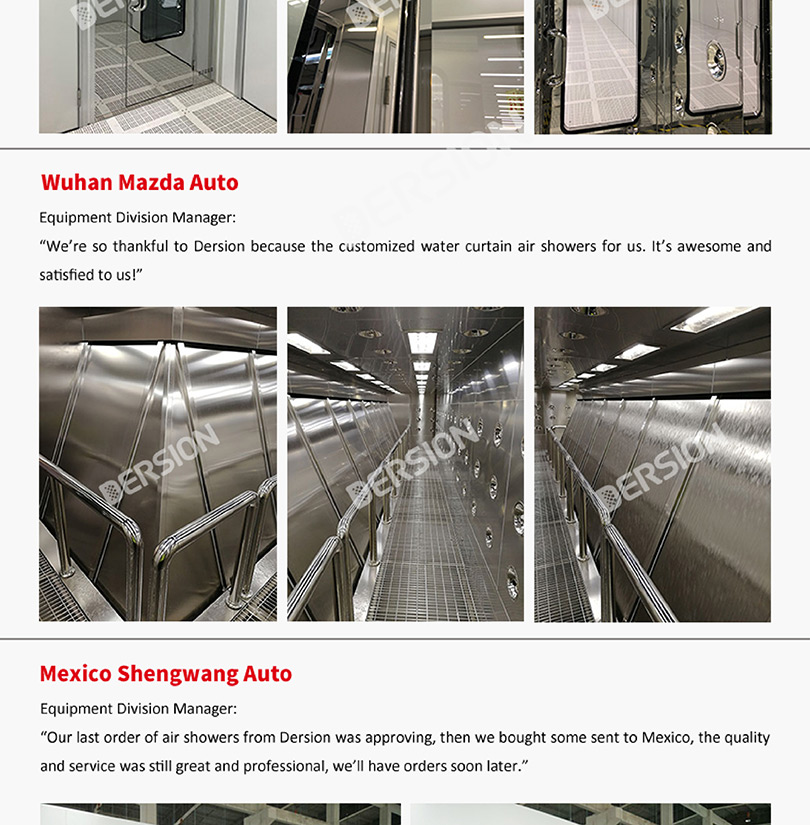

Project Case:
