Air Shower Pass through cabinets

Cleanroom pass through cabinets are supplement facilities to clean rooms, use for the transfer of parts and small equipment between clean room and outside environment, to lower the traffic within the clean room and significantly reduce contamination. Pass through cabinets are widely used by medical and pharmaceutical industries as well as food processing, air and spacecraft, and computers and electronics, and biology laboratories.
Air shower pass through cabinets have the function of dust extraction and electronic interlock mechanism, prevent destroying clean rooms’ airflow or differential pressure, reduce the contamination and protect the whole clean environment.

Get A Quote

浏览次数：

Product Features

Product Features:

● Airtight: Technical sealing strips made by dispensing machine, once molding, door handle is press-buckle type
● Easy-cleaning: Interior coved corners construction, easily wipe up
● Classy appearance: Double glazed windows, smooth and bright

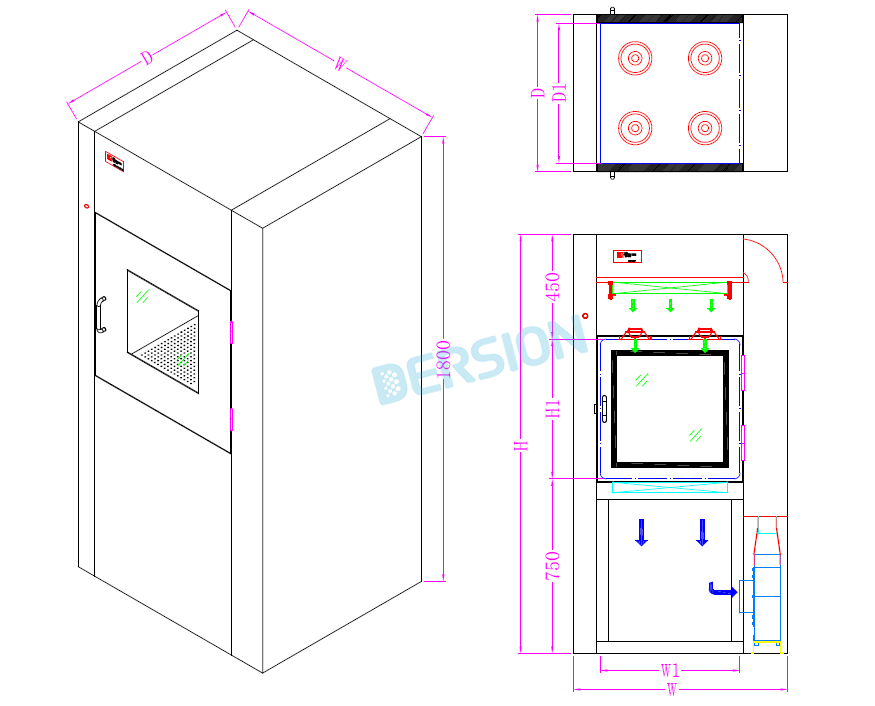

Standard Drawing:

Specifications:

Size WDH	Outside 920x680x1650 Inside 600x600x600	1120x880x1850 800x800x800
Main Material	Stainless Steel SUS304 or Steel SPCC Interior wall made of stainless steel SUS304
Glass Windows	502x502x5	650x650x5
	Double glazing windows with black backing finished frames
Nozzles	4pcs	6pcs
	Stainless Steel Type Embedded, or 360° revolved
Filter System	HEPA：99.99% 0.3um 595x595x50
Air Speed	25～30m/s
Control System	Shower time displayed, 0~99s adjustable, electronic interlock
	Optional：PLD control system+LCD touch screen
Power	220V 800W

Case Share:

Samsung Electrical Machinery
